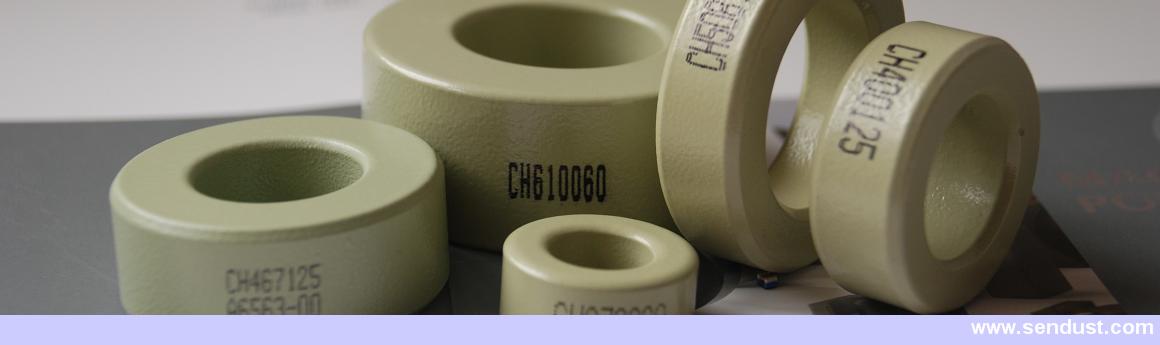

CSC高磁通磁环(HighFlux Cores)

CSC High Flux Part Number Matrix

High Flux

Perm

OD mm

ID mm

HT mm

26

60

125

147

160

3.56

1.78

1.52



CH035060

CH035125





3.94

2.24

2.54



CH039060

CH039125





4.65

2.36

2.54



CH046060

CH046125





6.35

2.79

2.79



CH063060

CH063125

CH063147

CH063160

6.60

2.67

2.54

CH066026

CH066060

CH066125

CH066147

CH066160

6.60

2.67

4.78

CH067026

CH067060

CH067125

CH067147

CH067160

6.86

3.96

5.08

CH068026

CH068060

CH068125

CH068147

CH068160

7.87

3.96

3.18

CH078026

CH078060

CH078125

CH078147

CH078160

9.65

4.78

3.18

CH096026

CH096060

CH096125

CH096147

CH096160

9.65

4.78

3.96

CH097026

CH097060

CH097125

CH097147

CH097160

10.2

5.08

3.96

CH102026

CH102060

CH102125

CH102147

CH102160

11.2

6.35

3.96

CH112026

CH112060

CH112125

CH112147

CH112160

12.7

7.62

4.75

CH127026

CH127060

CH127125

CH127147

CH127160

16.5

10.2

6.35

CH166026

CH166060

CH166125

CH166147

CH166160

17.3

9.65

6.35

CH172026

CH172060

CH172125

CH172147

CH172160

20.3

12.7

6.35

CH203026

CH203060

CH203125

CH203147

CH203160

22.9

14.0

7.62

CH229026

CH229060

CH229125

CH229147

CH229160

23.6

14.4

8.89

CH234026

CH234060

CH234125

CH234147

CH234160

26.9

14.7

11.2

CH270026

CH270060

CH270125

CH270147

CH270160

33.0

19.9

10.7

CH330026

CH330060

CH330125

CH330147

CH330160

34.3

23.4

8.89

CH343026

CH343060

CH343125

CH343147

CH343160

35.8

22.4

10.5

CH358026

CH358060

CH358125

CH358147

CH358160

39.9

24.1

14.5

CH400026

CH400060

CH400125

CH400147

CH400160

46.7

24.1

18.0

CH467026

CH467060

CH467125





46.7

28.7

15.2

CH468026

CH468060

CH468125





50.8

31.8

13.5

CH508026

CH508060

CH508125





57.2

26.4

15.2

CH571026

CH571060

CH571125





57.2

35.6

14.0

CH572026

CH572060

CH572125





62.0

32.6

25.0

CH610026

CH610060

CH610125





74.1

45.3

35.0

CH740026

CH740060

CH740125





77.8

49.2

12.7

CH777026

CH777060

CH777125





77.8

49.2

15.9

CH778026

CH778060

CH778125





88.9

66.0

15.9

CH888026

CH888060

CH888125





101.6

57.2

16.5

CH1016026

CH1016060

CH1016125





132.5

78.6

25.4

CH1325026

CH1325060

CH1325125





165.0

88.9

25.4

CH1625026

CH1625060

CH1625125
